R1 TILTROTATORS

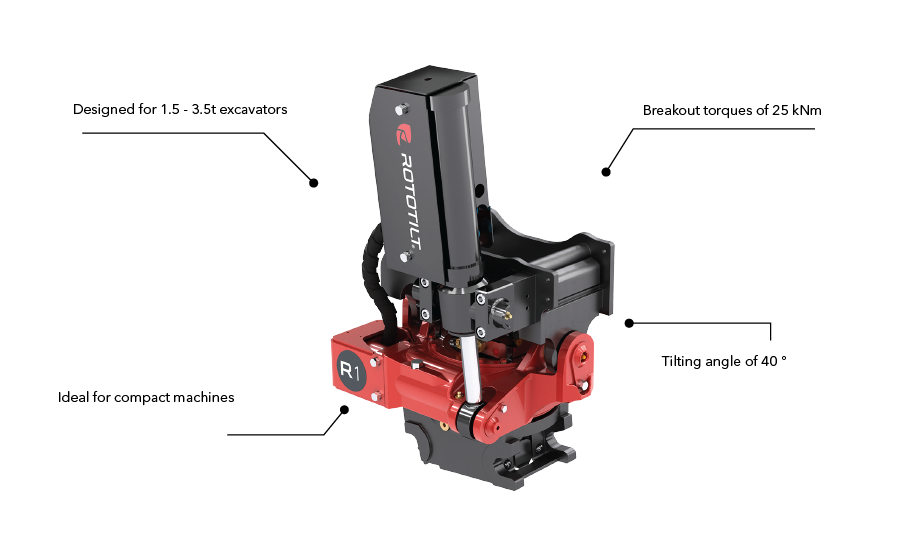

The Rototilt® R1 is our smallest tiltrotator model, adapted for compact machines weighing between 1.5-3.5 tonnes. Today’s compact machines are becoming more and more advanced, and are rapidly increasing in popularity. The R1 combines smart technology with muscle normally only found in significantly higher weight classes – which means that you get even more out of your machine.
BENEFITS & FEATURES OF THE R1 TILTROTATOR
TECHNICAL SPECIFICATIONS
| Machine weight, min-max | 1500 - 3500 kg |
|---|---|
| Weight (from) | 90 kg |
| Bucket width, max | 1000 mm |
| Breakout force, max | 35 kN |
| Breakout torque, max | 25 kNm |
| Tilt angle (2x) | 40 ° |
| Rotation speed (1 revolution in) | 7.0 s at 15l/min |
| Working pressure | 21 MPa |
| Recommended hydraulic flow, min | 21 l/min |
|---|---|
| Number of lubrication points | 5 |
| Rotation torque | 1650 Nm |
| Tilting torque, double-acting cylinders | 5800 Nm |
| Dimension A, Width | 290 mm |
| Dimension B, Installation height total | 1150 mm |
| Dimension C, Length | 456 mm |
| Dimension D, Installation height | 333 mm |
DISCOVER MORE ABOUT THE R1 TILTROTATOR
Introducing the Rototilt® R1, our smallest and most compact tiltrotator model, designed for machines weighing between 1.5-3.5 tonnes. As compact machines become increasingly advanced and popular, the R1 brings smart technology and robust performance typically found in larger models, enhancing the capabilities of your compact machine.
Key Features
- Smart Technology: Integrates advanced technology with exceptional performance.
- Compact Power: Delivers strength and functionality usually seen in higher weight classes.
- Versatile Applications: Perfect for a wide range of assignments with enhanced machine efficiency.
Technical Specs at a Glance
- Machine Weight: 1500 - 3500 kg
- Weight: 90 kg
- Bucket Width, Max: 1000 mm
- Breakout Force, Max: 35 kN
- Breakout Torque, Max: 25 kNm
- Tilt Angle: 40°
- Rotation Speed: 7.0 s at 15 l/min
- Working Pressure: 21 MPa
- Hydraulic Flow, Min: 21 l/min
- Lubrication Points: 5
- Rotation Torque: 1650 Nm
- Tilting Torque: 5800 Nm (double-acting cylinders)
- Dimensions: Width - 290 mm, Height - 1150 mm, Length - 456 mm, Installation Height - 333 mm
Why Choose the Rototilt® R1?
The Rototilt® R1 tiltrotator is the perfect addition for compact machines, offering advanced technology and powerful performance in a small package. With its ability to enhance machine efficiency and tackle a variety of assignments, the R1 ensures you get the most out of your equipment, making it an essential tool for any operator or contractor working with compact excavators.
