R4 TILTROTATORS
BENEFITS & FEATURES OF THE R4 TILTROTATOR
TECHNICAL SPECIFICATIONS
| Machine weight, min-max | 10,000 - 16,000 kg |
|---|---|
| Weight (from) | 380 kg |
| Bucket width, max | 1600 mm |
| Breakout force, max | 125 kNm |
| Breakout torque, max | 163 kNm |
| Tilt angle (2x) | 40 ° |
| Rotation speed (1 revolution in) | 7.0 s at 60 l/min |
| Working pressure | 25 MPa |
| Recommended hydraulic flow, min | 91 l/min |
|---|---|
| Number of lubrication points | 6 |
| Rotation torque | 7640 Nm |
| Tilting torque, single-acting cylinders | 26500 Nm |
| Tilting torque, double-acting cylinders | 38600 Nm |
| Dimension A, Width | 729 mm |
| Dimension B, Installation height total | 1037 mm |
| Dimension C, Length | 705 mm |
| Dimension D, Installation height | 503 mm |
DISCOVER MORE ABOUT THE R4 TILTROTATOR

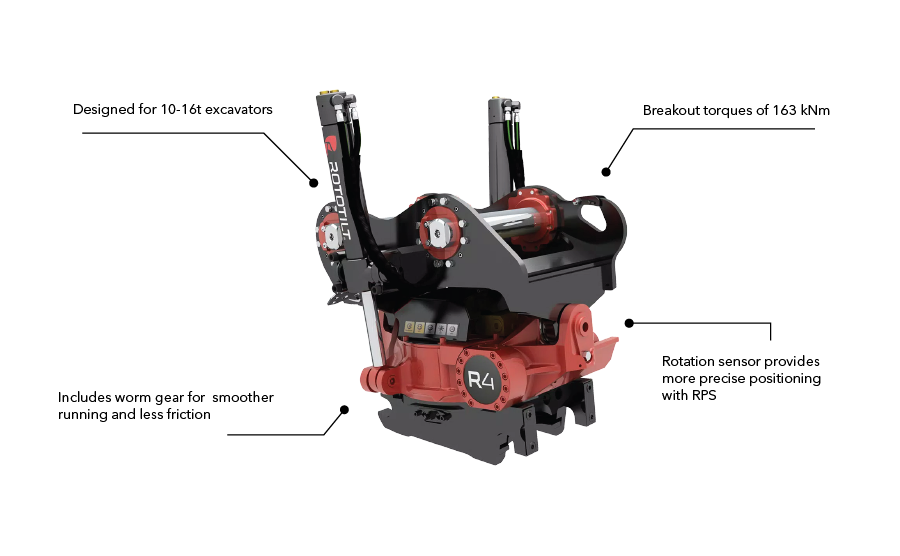

The Rototilt® R4 is specifically engineered for excavators weighing between 10-16 tonnes, capable of withstanding harsh environments and significant stresses. Despite its compact size and low weight, the R4 can handle breakout torques up to 163 kNm, making it an ideal choice for demanding tasks.
Key Features
- High Performance: Handles breakout torques up to 163 kNm.
- Worm Gear: Ensures smoother running with less friction.
- Rotation Sensor: Provides precise positioning with RPS.
- Robust Design: Includes a high-pressure seal, smart grease nipples, and bronze radial bearings.
- Long-Lasting: Oil-filled rotor housing for maximum lubrication and minimal wear.
Technical Specs at a Glance
- Machine Weight: 10,000 - 16,000 kg
- Weight (from): 380 kg
- Bucket Width, Max: 1600 mm
- Breakout Force, Max: 125 kNm
- Breakout Torque, Max: 163 kNm
- Tilt Angle: 40°
- Rotation Speed: 7.0 s at 60 l/min
- Working Pressure: 25 MPa
- Hydraulic Flow, Min: 91 l/min
- Lubrication Points: 6
- Rotation Torque: 7640 Nm
- Tilting Torque: 26500 Nm (single-acting), 38600 Nm (double-acting)
- Dimensions: Width - 729 mm, Height - 1037 mm, Length - 705 mm, Installation Height - 503 mm
Why Choose the Rototilt® R4?
The Rototilt® R4 offers unmatched performance and durability for machine operators and contractors. Its advanced features, such as the worm gear, rotation sensor, and robust design, ensure smooth operation, precise control, and long service life. The R4 is the perfect addition to any fleet, providing the reliability and efficiency needed to handle the toughest jobs.
